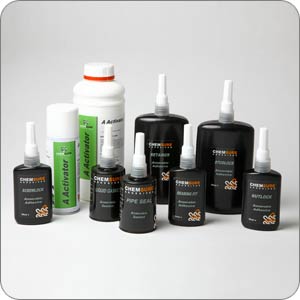

Anaerobic products are single component liquid adhesives that are used to fill the gaps between threaded co-axial components. The cure system is activated through the exclusion of air (oxygen) in conjunction with the metal substrate. The product solidifies to an inert plastic which resists corrosion and vibration. Anaerobics are available in a range of strengths and viscosities depending on the degree of disassembly that is required.
Request info on full range >| Code | Contents | Usage | Appearance | Viscosity (cps)1 | Cure Speed (min) | Gap Fill | Temperature Range | Shear Strength |
|---|---|---|---|---|---|---|---|---|
| A01 | 50ml / 250ml | Low Viscosity | Green | 100~150 | 10~15 | 0.05 | -54°C~150°C | >15N.m |
| A20 | 50ml / 250ml | High Temperature | Green | 5,000~12,000 | 10~15 | 0.38 | -54°C~200°C | >17N.m |
| A38 | 50ml / 250ml | Slip Fit | Green | 2,000~3,000 | 10~15 | 0.25 | -54°C~150°C | >25N.m |
| A48 | 50ml / 250ml | Press Fit | Green | 400~600 | 10~15 | 0.15 | -54°C~150°C | >25N.m |
| A80 | 50ml / 250ml | Slip Fit | Green | 1,250~2,000 | 15 | 0.4 | -54°C~150°C | >19.3N.m |
| Code | Contents | Usage | Appearance | Viscosity (cps)1 | Cure Speed (min) | Torque Strength Break | Torque Strength Prevail | Temperature Range | Others |
|---|---|---|---|---|---|---|---|---|---|
| A22 | 50ml / 250ml | M20 Below Removable | Purple | 1,200~1,500 | 15 | 8 | 4 | -54°C~150°C | Thixotropy |
| A42 | 50ml / 250ml | M20 Below Removable | Blue | 1,200~1,500 | 10~15 | 17 | 5 | -54°C~150°C | Thixotropy |
| A43 | 50ml / 250ml | M20 Below Removable | Blue | 1,200~3,000 | 10~15 | 20 | 7 | -54°C~150°C | Thixotropy |
| A62 | 50ml / 250ml | M20 Below | Red | 1,600~5,500 | 15 | 22 | 10 | -54°C~150°C | Thixotropy |
| A71 | 50ml / 250ml | M25 Below | Red | 400~600 | 15 | 26 | 36 | -54°C~150°C | - |
| A72 | 50ml / 250ml | M36 Below | Red | 6,000~10,000 | 15~30 | 20 | 30 | -54°C~230°C | High Strength |
| A77 | 50ml / 250ml | M36 Below | Red | 6,000~8,000 | 40 | 32 | 32 | -54°C~150°C | - |
| A90 | 50ml / 250ml | M2 - 12 | Green | 20~70 | 10~15 | 7 | 30 | -54°C~200°C | Penetration |
| Activator | 50ml / 200ml | - | Green | 2 | 0.5~1.2 | - | - | Cure Acceleration |
| Code | Usage | Appearance | Viscosity (map's/cap) | Temperature Range | Compressive(Psi) |
|---|---|---|---|---|---|
| 545 | Hydraulic/Pneumatic | Purple | 9,000~20,000 | -54°C~150°C | 10,000 |
| 542 | Hydraulic/Pneumatic | Brown | 1,200~2,750 (Thixotropy) | -54°C~150°C | 10,000 |
| 565 | PST Thread Sealant | White | 175,000~525,000 | -54°C~150°C | 10,000 |
| 567 | PST Thread Sealant/High Temperature | White | 280,000~800,000 | -54°C~200°C | 10,000 |
| 577 | All Coarse Metal Thread | Yellow | 70,000~130,000 (Thixotropy) | -54°C~150°C | 10,000 |
| Code | Usage | Appearance | Viscosity (map's/cap) | Gap Fill | Temperature Range | Cure Speed |
|---|---|---|---|---|---|---|
| 515 | Flexible | Purple | 700,000~1,500,000 | 0.25 | -54°C~150°C | 1-2hr |
| 518 | Suitable for Metal (Including Aluminium) | Red | 3,000,000~4,500,000 (Thixotropy) | 0.25 | -54°C~150°C | 1-2hr |
